Xprinter H500B/H500E Thermal Transfer Ribbon Label Barcode Printer 20-108mm Width for Cloth Tag Jewlery Tag Retail
Xprinter H500B/H500E Thermal Transfer Ribbon Label Barcode Printer 20-108mm Width for Cloth Tag Jewlery Tag Retail
Couldn't load pickup availability
SPECIFICATIONS
After-sale Service: Shop's Three Guarantees
Application: For Commercial
Battery Included: No
Black Print Speed: 127mm/s
Brand Name: Xprinter
Certification: CE
Consumable Type: Label Paper
Dot Matrix Printer Type: Universal ticket printer
Double-sided Printing: No
High-concerned chemical: None
Interface Type: USB
Internal Memory: 64 MB
Max Paper Size: A0(A0)108mm
Max. Resolution: 203dpi
Origin: Mainland China
Paper Feed Mode: Manual
Print Speed: 20ppm
Signal Connection Type: None
Size: 302.5*234*194.8mm
Supports Network Printing: No
Type: Ribbon Printer
Use: Label Maker
Voltage: 100-240V
Weight: 4.5kg

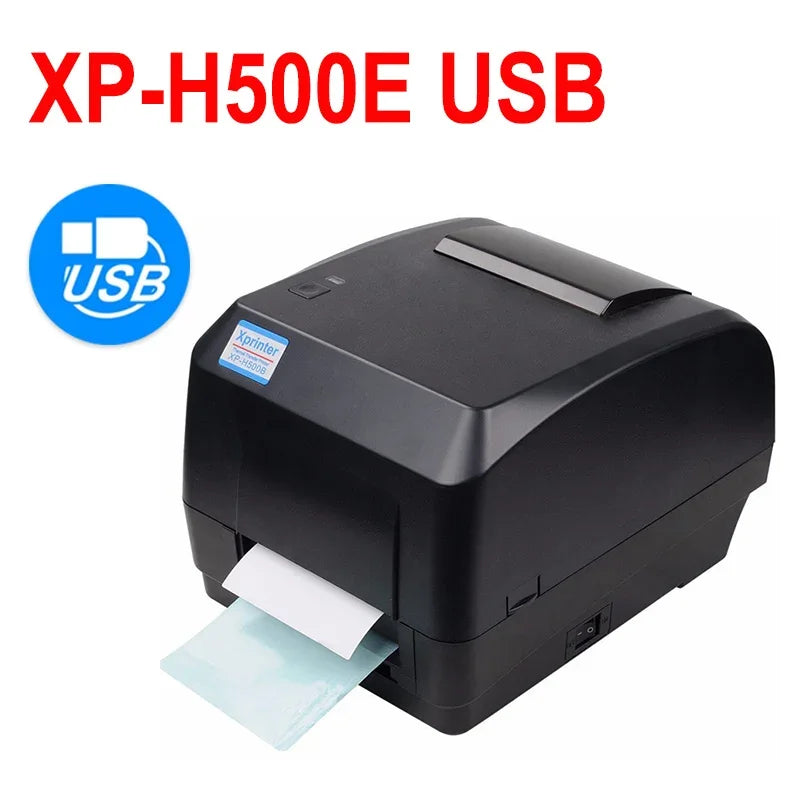

Xprinter Model: XP-H500E
Xprinter H500B/H500E Thermal Transfer Ribbon Label Barcode Printer 20-108mm Width for Cloth Tag Jewlery Tag Retail
Advantage:
Specification
Max.print length 2794 mm (110”) 1016 mm (40”)Media widthFont and barcode rotation

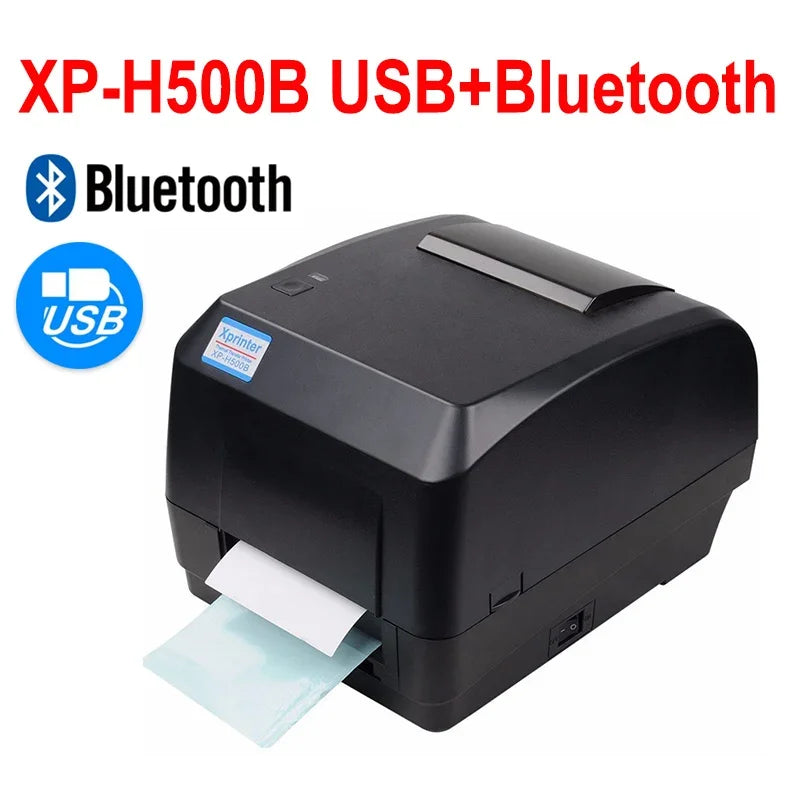

Printer Model XP-H500B XP-H500E
Printing Features
Resolution H500B 203 DPI
H500E 300 DPI

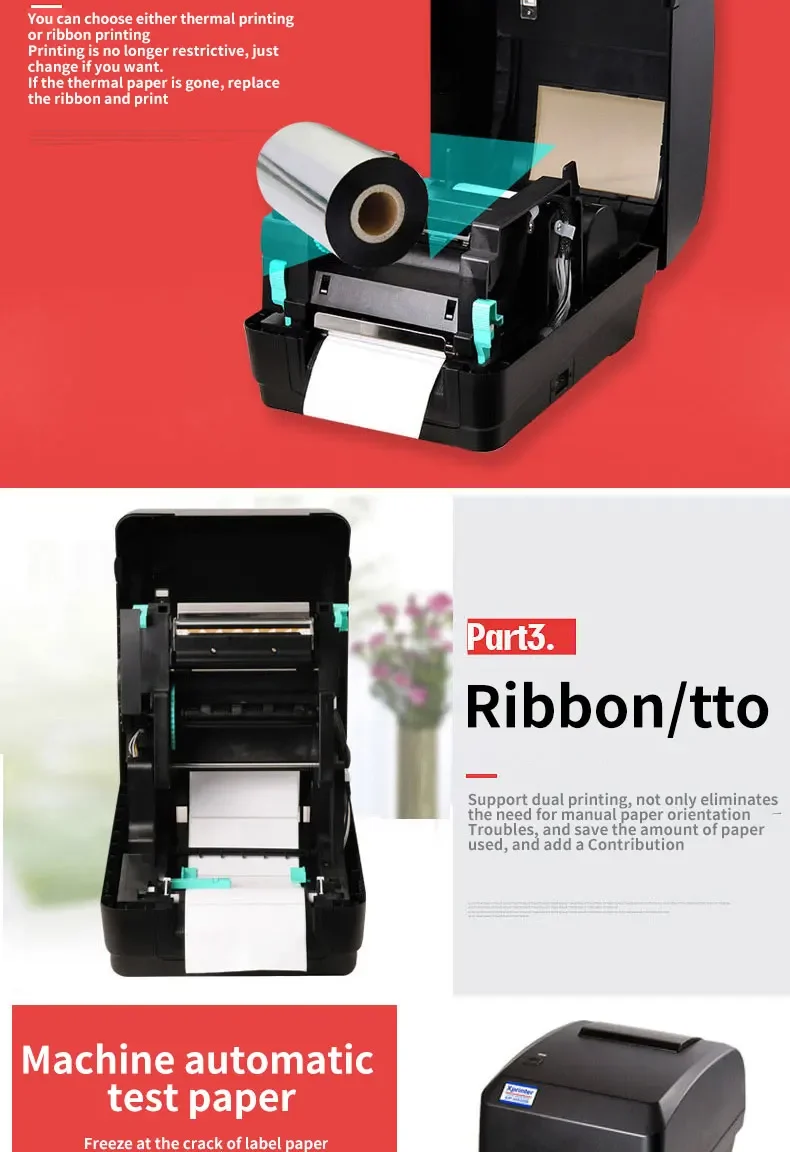

Printing method Thermal Transfer / Direct Thermal
Max.print speed 127 mm (5”) / s Max.101.6 mm (4")/s
Max.print width 108 mm (4.25") 104 mm (4.09")
Max.print length 2286 mm (90”)
1016 mm (40”)
Media
Media type Continuous, gap, black mark, fan-fold and punched hole
Media width 25.4-118mm (1.0”-4.6”)
Media thickness 0.06~0.254 mm (2.36~10mil)
Media core diameter 25.4 ~ 76.2 mm (1 "~ 3 ")
Label length 10 ~ 2286 mm(0.39" ~ 90" ) 10 ~ 1016 mm（0.39" ~ 40"）
Label roll capacity 127 mm (5“) (External diameter)
Ribbon capacity Max.300 m
Ribbon width 110 mm
Ribbon core inner diameter 25.4 mm (1")
Performance Features
Processor 32-bit CPU

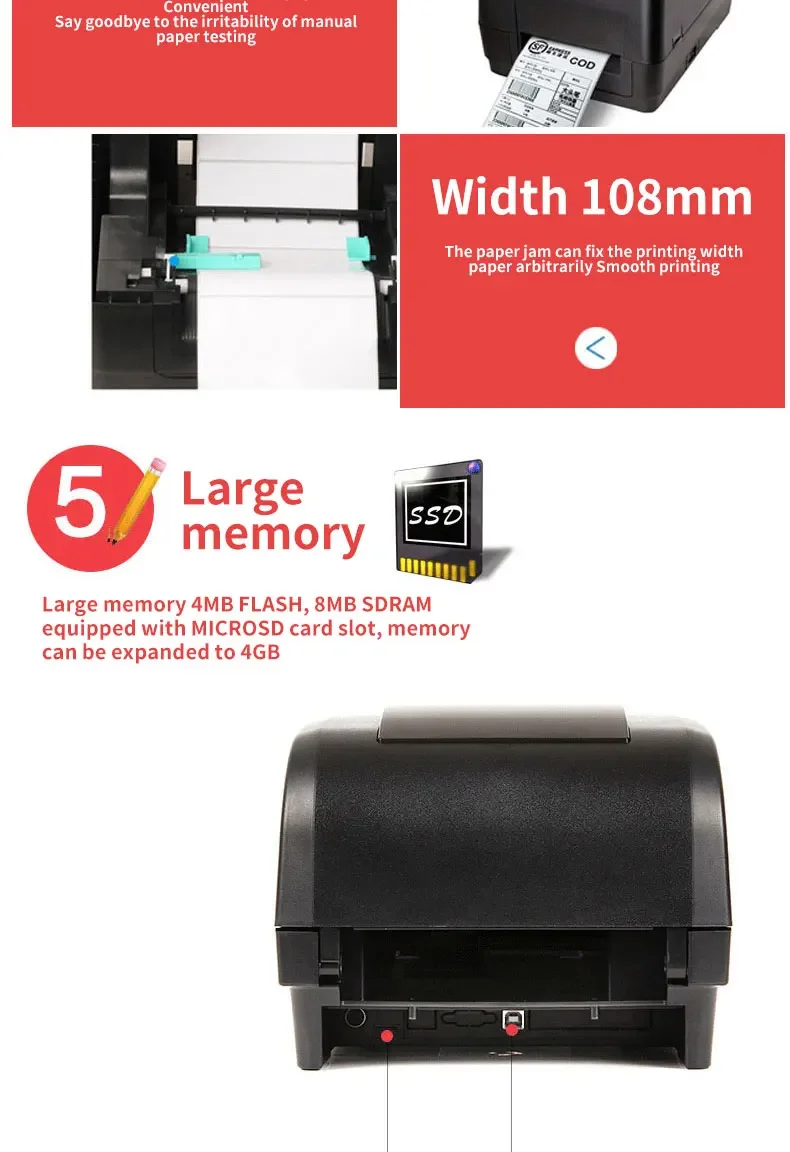

Memory 4MB Flash Memory, 8MB SDRAM, SD card reader for Flash memory expansion, up to 4 GB
Interface
Standard: USB+TF card Optional: Serial/Lan/Bluetooth/WIFI/Parallel
Fonts/Graphics/Symbologies
Internal fonts 8 alpha-numeric bitmap fonts, Windows fonts are downloadable from software.
1D barcode
Code 39, Code 93, Code 128UCC, Code 128 ，subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-8,EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on,
MSI, PLESSEY, POSTNET, China POST, GS1 DataBar, Code 11
2D barcode PDF-417, Maxicode, DataMatrix, QR code, Aztec
Rotation
0°、90°、180°、270°
Emulaion TSPL、EPL、ZPL、DPL
Physical Features

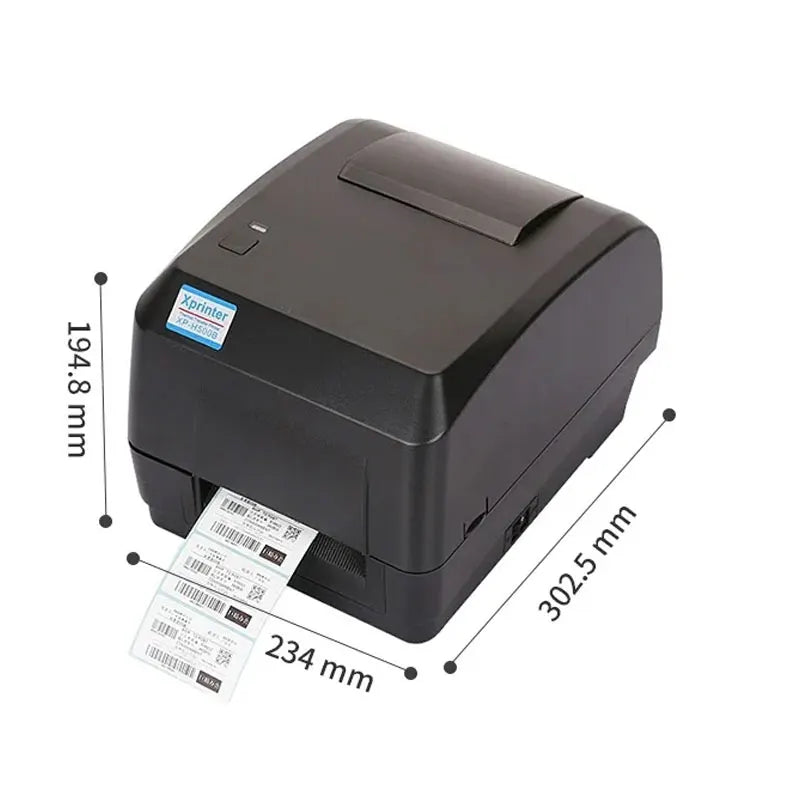

Dimension 302.5 mm (D) x 234 mm (W) x 194.8 mm (H)
Weight 2.6kg
Reliability
Print head life 30 km
Software
Driver Windows/Linux/Mac
SDK Windows/Android/iOS
Power supply
Input：AC 100-240V,1.8A, 50-60Hz
Output：DC 24V, 2.5A, 60W
Options
Factory Options ① Peeler
② Cutter
Dealer Options ①External paper roll holder and 1"paper roll spindle
②Bluetooth module (RS-232C transmission interface)
③WIFI module
④Extension board for external paper roll holder
Environmental Conditions
Operation 5 ~ 40°C（41~104°F），Humidity: 25 ~ 85% non-condensing
Storage environment -40 ~ 60°C（-40~140°F），Humidity:10 ~ 90% non-condensing
